Introduction to webgazeR
Here I outline the basic functions of the webgazeR package. I am using quarto-webr which allows for code to be run interactively in your browser!
Packages
Below are the basic packages needed to run this vignette. The below code chunks will load in the packages needed.
options(stringsAsFactors = F) # no automatic data transformation
options("scipen" = 100, "digits" = 10) # suppress math annotation
library(tidyverse)
library(here) # relative paths instead of abosoulte aids in reproduce
library(tinytable) # nice tables
library(janitor)# functions for cleaning up your column names
library(easystats)
library(knitr)
library(ggokabeito)
#install.packages('webgazeR', repos = c('https://jgeller112.r-universe.dev', 'https://cloud.r-project.org'))
library(webgazeR)Load webgazeR
- First you must install it via Github.
# do not run interactively
remotes::install_github("https://github.com/jgeller112/webgazeR")- Then you can load it into your session
# load the package
library(webgazeR)Eye data
When data is generated from Gorilla, each trial in your experiment is its own file. Because of this, we need to take all the individual files and merge them together. The merge_webcam_files function merges each trial from each participant into a single tibble or dataframe. Before running the merge_webcam_files function, ensure that your working directory is set to where the files are stored. This function reads in all the .xlsx files, binds them together into one dataframe, and cleans up the column names. The function then filters the data to include only rows where the type is βpredictionβ and the screen_index matches the specified value (in our case, screen 4). This is where eye-tracking data was recorded. The function renames the spreadsheet_row column to trial and sets both trial and subjectas factors for further analysis in our pipeline. As a note, all steps should be followed in order due to the renaming of column names. If you encounter an error it might be because column names have not been changed.
# Get the list of all files in the folder
vwp_files <- list.files(here::here("data", "monolinguals", "raw"), pattern = "\\.xlsx$", full.names = TRUE)
# Exclude files that contain "calibration" in their filename
vwp_paths_filtered <- vwp_files[!grepl("calibration", vwp_files)]setwd(here::here("data", "monolinguals", "raw")) # set working directory to raw data folder
edat <- merge_webcam_files(vwp_paths_filtered, screen_index=4) # eye tracking occured ons creen index 4the webgazeR package includes a combined dataset for us to use.
edat <- webgazeR::eyedataBehavioral Data
Gorilla produces a .csv file that include trial-level information (agg_ege_data). Below we read that object in and create an object called emstr that selects useful columns from that file and renames stimuli to make them more intuitive. Because most of this will be user-specific, no function is called here.
# load in trial level data
agg_eye_data <- webgazeR::behav_dataBelow we describe the pre-processing done on the behavioral data file. The below code processes and transforms the agg_eye_data dataset into a cleaned and structured format for further analysis. First, the code renames several columns for easier access using the janitor::clean_names function. It filters the dataset to include only rows where zone_type is βresponse_button_imageβ, representing the picture selected for that trial. Afterward, the function renames additional columns (tlpic to TL, trpic to TR, etc.). We also renamed participant_private_id to subject, spreadsheet_row to trial, and reaction_time to RT. This makes our columns consistent with the edat above for merging later on. Lastly, the `reaction time (RT) is converted to a numeric format for further numerical analysis.
emstr <- agg_eye_data %>%
janitor::clean_names() %>%
# Select specific columns to keep in the dataset
dplyr::select(participant_private_id, correct, tlpic, trpic, blpic, brpic, trialtype, targetword, tlcode, trcode, blcode, brcode, zone_name, zone_type,reaction_time, spreadsheet_row, response) %>%
# Filter the rows where 'Zone.Type' equals "response_button_image"
dplyr::filter(zone_type == "response_button_image") %>%
# Rename columns for easier use and readability
dplyr::rename(
"TL" = "tlpic", # Rename 'tlpic' to 'TL'
"TR" = "trpic", # Rename 'trpic' to 'TR'
"BL" = "blpic", # Rename 'blpic' to 'BL'
"BR" = "brpic", # Rename 'brpic' to 'BR'
"targ_loc" = "zone_name", # Rename 'Zone.Name' to 'targ_loc'
"subject" = "participant_private_id", # Rename 'Participant.Private.ID' to 'subject'
"trial" = "spreadsheet_row", # Rename 'spreadsheet_row' to 'trial'
"acc" = "correct", # Rename 'Correct' to 'acc' (accuracy)
"RT" = "reaction_time" # Rename 'Reaction.Time' to 'RT'
) %>%
# Convert the 'RT' (Reaction Time) column to numeric type
mutate(RT = as.numeric(RT),
subject=as.factor(subject),
trial=as.factor(trial))Get audio onset time
Because we are using audio on each trial and we are running this experiment for the browser audio onset is never going to to conistent across participants. In Gorilla there is an option to collect advanced audio features such as when the audio play was requested, fired (played) and ended. We will want to incorporate this into our pipeline. Gorilla records the onset of the audio which varies by participant. We are extracting that here by filtering zone_type to content_web_audio and response equal to βAUDIO PLAY EVENT FIREDβ. This will tell us when the audio was triggered in the experiment (reaction_time).
audio_rt <- agg_eye_data %>%
janitor::clean_names()%>%
select(participant_private_id,zone_type, spreadsheet_row, reaction_time, response) %>%
filter(zone_type=="content_web_audio", response=="AUDIO PLAY EVENT FIRED")%>%
distinct() %>%
rename("subject" = "participant_private_id",
"trial" ="spreadsheet_row",
"RT_audio" = "reaction_time") %>%
select(-zone_type) %>%
mutate(RT_audio=as.numeric(RT_audio))We then merge this information with emstr. We see that RT_audio has been added to our dataframe.
trial_data_rt <- merge(emstr, audio_rt, by=c("subject", "trial"))
head(trial_data_rt) %>%
head() %>%
kable()| subject | trial | acc | TL | TR | BL | BR | trialtype | targetword | tlcode | trcode | blcode | brcode | targ_loc | zone_type | RT | response.x | RT_audio | response.y |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 11788555 | 10 | 1 | sunrise.jpg | pillar.jpg | pillow.jpg | willow.jpg | TRUU | willow.jpg | R | U | U2 | T | BR | response_button_image | 1822.1999998 | willow.jpg | 17.09999990 | AUDIO PLAY EVENT FIRED |
| 11788555 | 103 | 1 | cap.jpg | hose.jpg | goal.jpg | hole.jpg | TCUU | hose.jpg | U | T | U2 | C | TR | response_button_image | 1467.0000000 | hose.jpg | 10.59999990 | AUDIO PLAY EVENT FIRED |
| 11788555 | 104 | 0 | hip.jpg | cave.jpg | cage.jpg | gauge.jpg | TCRU | cage.jpg | U | C | T | R | TR | response_button_image | 929.8999996 | cave.jpg | 17.89999962 | AUDIO PLAY EVENT FIRED |
| 11788555 | 106 | 1 | pear.jpg | bear.jpg | jet.jpg | base.jpg | TUUU | jet.jpg | U3 | U | T | U2 | BL | response_button_image | 1661.4000001 | jet.jpg | 12.00000000 | AUDIO PLAY EVENT FIRED |
| 11788555 | 107 | 1 | beagle.jpg | mother.jpg | money.jpg | honey.jpg | TCUU | mother.jpg | U | T | C | U2 | TR | response_button_image | 1513.5999999 | mother.jpg | 15.90000010 | AUDIO PLAY EVENT FIRED |
| 11788555 | 108 | 1 | parrot.jpg | carrot.jpg | carriage.jpg | tadpole.jpg | TCRU | carrot.jpg | R | T | C | U | TR | response_button_image | 1456.8000002 | carrot.jpg | 16.00000000 | AUDIO PLAY EVENT FIRED |
Sampling Rate
While most commercial eye-trackers sample at a constant rate, webcam eye-trackers do not. Below is some code to calculate the sampling rate of each participant. Ideally, you should not have a sampling rate less than 5 Hz. It has been recommended you drop those values. The below function analyze_sample_rate calculates calculates the sampling rate for each subject and trial in an eye-tracking dataset. It provides overall statistics, including the median and standard deviation of sampling rates in your experiment,and also generates a histogram of median sampling rates by subject with a density plot overlayed.
samp_rate <- analyze_sampling_rate(edat, summary_stat = "mean")Overall mean Sampling Rate (Hz): 22.70874715
Overall Standard Deviation of Sampling Rate (Hz): 7.854993476
Sampling Rate by Trial:
# A tibble: 3,122 Γ 5
subject trial max_time n_unique_times SR
<int> <int> <dbl> <int> <dbl>
1 11788555 7 3664. 107 29.2
2 11788555 8 1295 39 30.1
3 11788555 9 2298. 68 29.6
4 11788555 10 1743. 52 29.8
5 11788555 12 1741. 52 29.9
6 11788555 13 1365. 40 29.3
7 11788555 15 1404. 40 28.5
8 11788555 16 1714. 51 29.8
9 11788555 21 1584. 47 29.7
10 11788555 27 2103. 62 29.5
# βΉ 3,112 more rows
mean Sampling Rate by Subject:
# A tibble: 23 Γ 2
subject summary_SR
<int> <dbl>
1 11788555 29.6
2 11788682 29.7
3 11788824 23.7
4 11788857 8.77
5 11789574 10.8
6 11795362 22.5
7 11795372 24.9
8 11795375 28.4
9 11795376 29.4
10 11795379 30.4
# βΉ 13 more rows

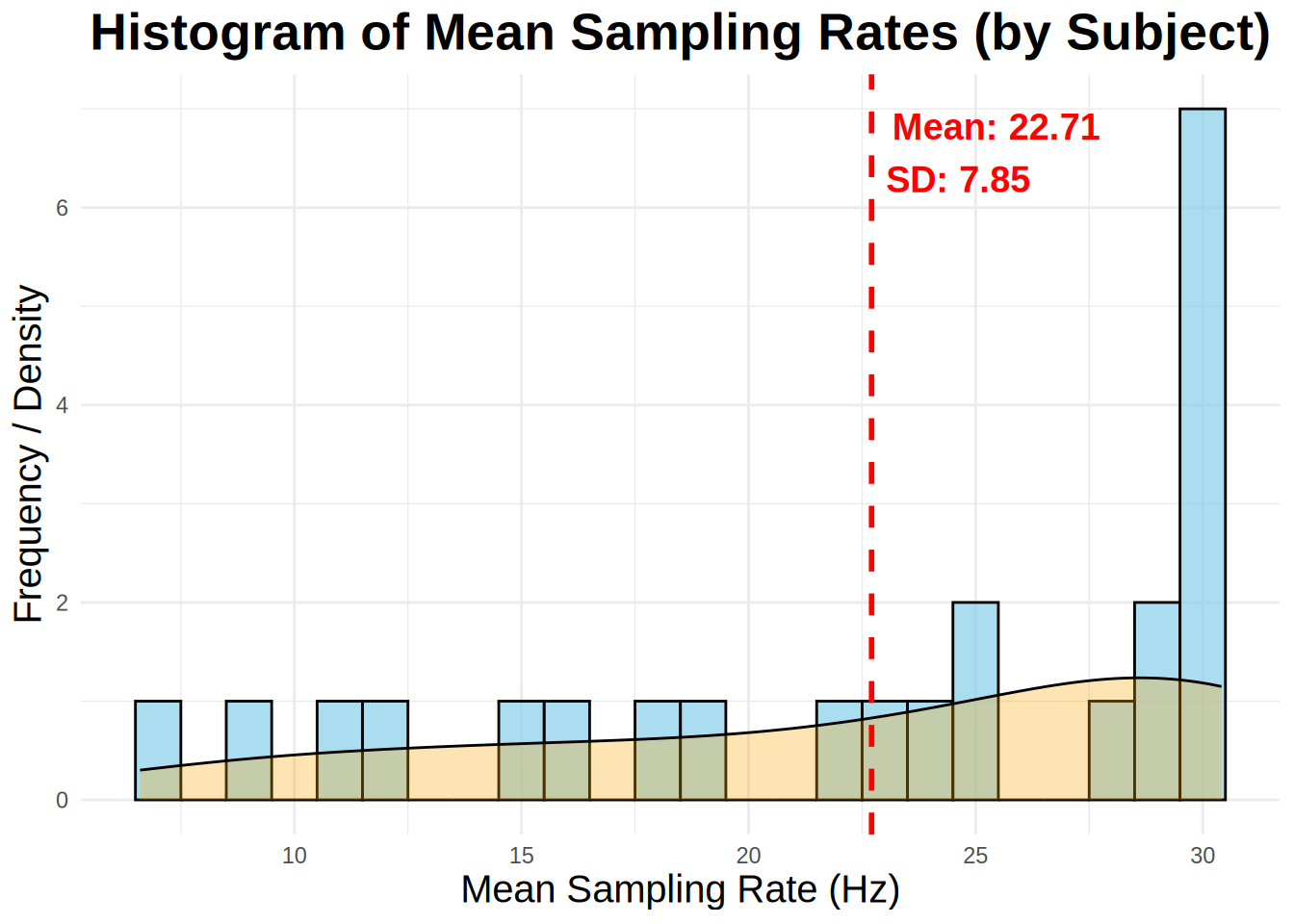

In this example, we have a median sampling rate of 24.77 with a SD of 7.81.
When using the above function, separate data frames are produced for subjects and trials. These can be added to the behavioral data object and this merge process is documented below.
# Extract by-subject and by-trial sampling rates from the result
subject_sampling_rate <- samp_rate$summary_SR_by_subject # Sampling rate by subject
trial_sampling_rate <- samp_rate$SR_by_trial # Sampling rate by trial
# Ensure subject and trial are factors for proper merging
trial_sampling_rate$subject <- as.factor(trial_sampling_rate$subject)
trial_sampling_rate$trial <- as.factor(trial_sampling_rate$trial)
subject_sampling_rate$subject <- as.factor(subject_sampling_rate$subject)
# Rename column dynamically based on function output (summary_stat can be "mean" or "median")
colnames(subject_sampling_rate)[colnames(subject_sampling_rate) == "summary_SR"] <- "sampling_rate_subject"
colnames(trial_sampling_rate)[colnames(trial_sampling_rate) == "SR"] <- "sampling_rate_trial"
# Merge by-subject sampling rate with target data
target_data_with_subject_SR <- trial_data_rt %>%
left_join(subject_sampling_rate, by = "subject")
# Merge by-trial sampling rate with target data
target_data_with_full_SR <- target_data_with_subject_SR %>%
select(subject, trial, sampling_rate_subject) %>%
left_join(trial_sampling_rate, by = c("subject", "trial"))We can add this to our behavioral data
trial_data <- left_join(trial_data_rt, target_data_with_full_SR, by=c("subject", "trial"))Users can use the filter_sampling_rate function to either either (1) throw out data, by subject, by trial, or both, and (2) label it sampling rates below a certain threshold as bad (TRUE or FALSE). Letβs use the filter_sampling_rate() function to do this. We will read in our target_data_with_full_SR object.
We leave it up to the user to decide what to do and make no specific recommendations. In our case we are going to remove the data by subject and by trial (action==βbothβ) if sampling frequency is below 5hz (threshold=5). The filter_sampling_rate function is designed to process a dataset containing subject-level and trial-level sampling rates. It allows the user to either filter out data that falls below a certain sampling rate threshold or simply label it as βbadβ. The function gives flexibility by allowing the threshold to be applied at the subject level, trial level, or both. It also lets the user decide whether to remove the data or flag it as below the threshold without removing it. If action = remove, the function will output how many subjects and trials were removed by on the threshold.
filter_edat <- filter_sampling_rate(trial_data,threshold = 5,
action = "remove",
by = "both")filter_edat returns a dataframe with trials and subjects removed. If we set the argument action to label, filter_edat_label would return a dataframe that includes column(s) with sampling rates < 5 labeled as TRUE (bad) or FALSE
filter_edat_label <- filter_sampling_rate(trial_data,threshold = 5,
action = "label",
by="both")Here no subjects had a threshold below 5. However, 18 trials did, and they were removed.
Out-of-bounds (outside of screen)
It is important that we do not include points that fall outside the standardized coordinates. The gaze_oob function calculates how many of the data points fall outside the standardized range. This function returns how many data points fall outside this range by subject and provides a percentage. This information would be useful to include in the final paper. We then add by-subject and by-trial out of bounds data and exclude participants and trials with > 30% missing data.
oob_data <- gaze_oob(edat)Subject: 11788555
Total trials: 54
Total points: 2483
Total missing percentage: 24.49%
X: 17.28%
Y: 13.53%
Subject: 11788682
Total trials: 154
Total points: 5798
Total missing percentage: 9.5%
X: 6.83%
Y: 3.47%
Subject: 11788824
Total trials: 134
Total points: 6961
Total missing percentage: 25.74%
X: 17.14%
Y: 13.37%
Subject: 11788857
Total trials: 54
Total points: 2237
Total missing percentage: 12.38%
X: 11.85%
Y: 1.3%
Subject: 11789574
Total trials: 54
Total points: 932
Total missing percentage: 23.71%
X: 14.16%
Y: 16.09%
Subject: 11795362
Total trials: 154
Total points: 3951
Total missing percentage: 15.39%
X: 10%
Y: 7.69%
Subject: 11795372
Total trials: 154
Total points: 4598
Total missing percentage: 14.72%
X: 9.11%
Y: 8.22%
Subject: 11795375
Total trials: 154
Total points: 6795
Total missing percentage: 14.83%
X: 11.18%
Y: 6.99%
Subject: 11795376
Total trials: 154
Total points: 6749
Total missing percentage: 24.83%
X: 13.48%
Y: 16.42%
Subject: 11795379
Total trials: 54
Total points: 2247
Total missing percentage: 15.58%
X: 4.36%
Y: 12.28%
Subject: 11795382
Total trials: 154
Total points: 5239
Total missing percentage: 10.08%
X: 6.91%
Y: 5.99%
Subject: 11795385
Total trials: 154
Total points: 6172
Total missing percentage: 25.23%
X: 14.52%
Y: 15.83%
Subject: 11795386
Total trials: 154
Total points: 4658
Total missing percentage: 29.99%
X: 17%
Y: 22.33%
Subject: 11795387
Total trials: 154
Total points: 3634
Total missing percentage: 16.13%
X: 9.41%
Y: 9.25%
Subject: 11795388
Total trials: 154
Total points: 4097
Total missing percentage: 18.43%
X: 11.33%
Y: 11.11%
Subject: 11795426
Total trials: 154
Total points: 1242
Total missing percentage: 9.82%
X: 6.44%
Y: 6.44%
Subject: 11795446
Total trials: 154
Total points: 6712
Total missing percentage: 8.13%
X: 5.91%
Y: 4.68%
Subject: 11795529
Total trials: 154
Total points: 4668
Total missing percentage: 10.33%
X: 6.92%
Y: 4.86%
Subject: 11795650
Total trials: 154
Total points: 2213
Total missing percentage: 4.56%
X: 2.08%
Y: 2.89%
Subject: 11795671
Total trials: 154
Total points: 4982
Total missing percentage: 28.86%
X: 18.15%
Y: 17.7%
Subject: 11796749
Total trials: 154
Total points: 6469
Total missing percentage: 29.23%
X: 23.09%
Y: 13.48%
Subject: 11796756
Total trials: 154
Total points: 6249
Total missing percentage: 13.12%
X: 7.25%
Y: 8.64%
Subject: 11796779
Total trials: 154
Total points: 5737
Total missing percentage: 4.41%
X: 2.18%
Y: 2.75%Zone coordinates

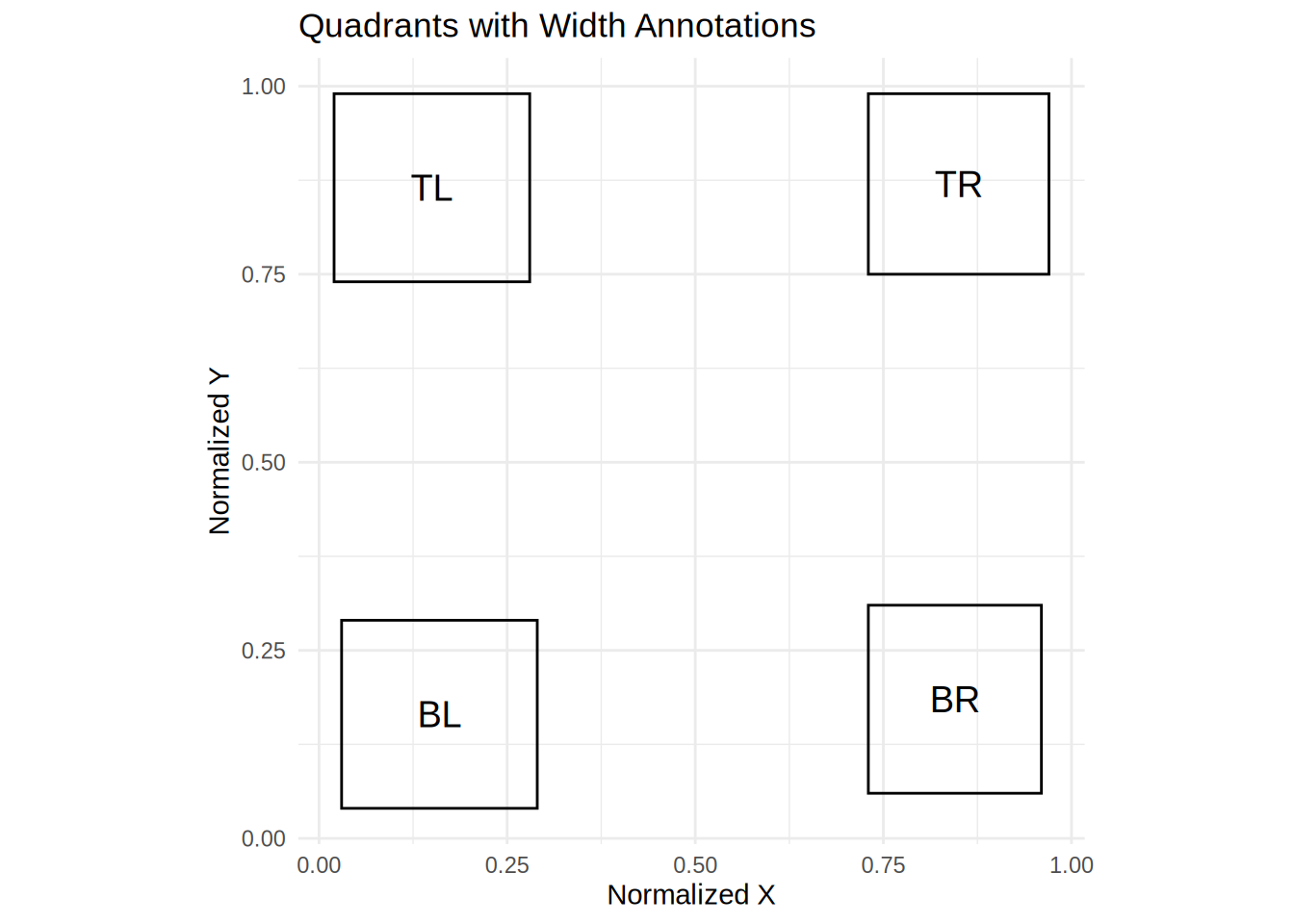

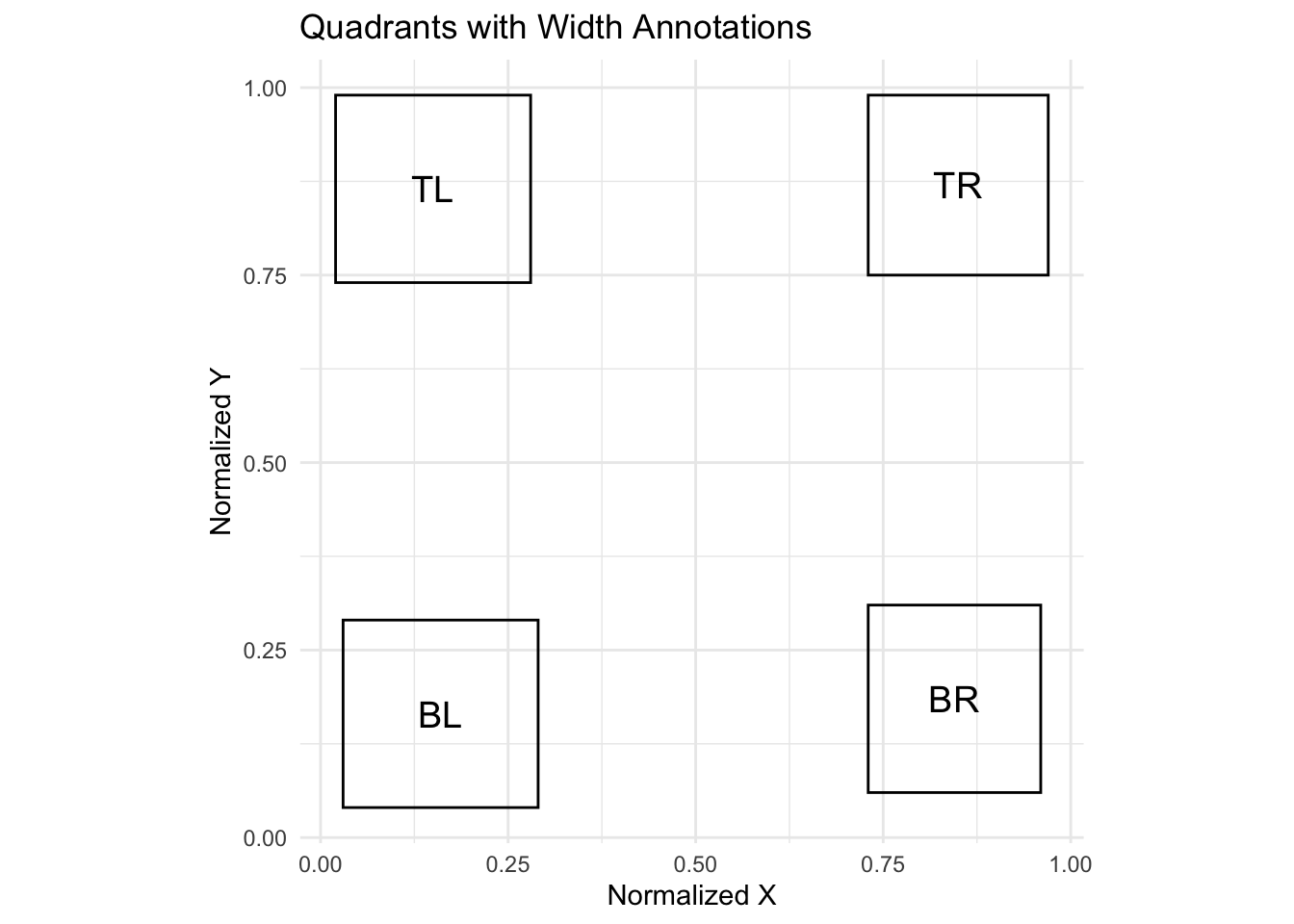

In the lab, we can control every aspect of the experiment. Online we cant do this. Participants are going to be completing the experiment under a variety of conditions. This includes using different computers, with very different screen dimensions. To control for this, Gorilla outputs standardized zone coordinates. As discussed in the Gorilla documentation, the Gorilla layout engine lays everything out in a 4:3 frame and makes that frame as big as possible. The normalized coordinates are then expressed relative to this frame; for example, the coordinate 0.5, 0.5 will always be the center of the screen, regardless of the size of the participantβs screen. We used the normalized coordinates in our analysis. However, there are a few different ways to specify the four coordinates of the screen, which I think is worth highlighting.
Quadrant Approach

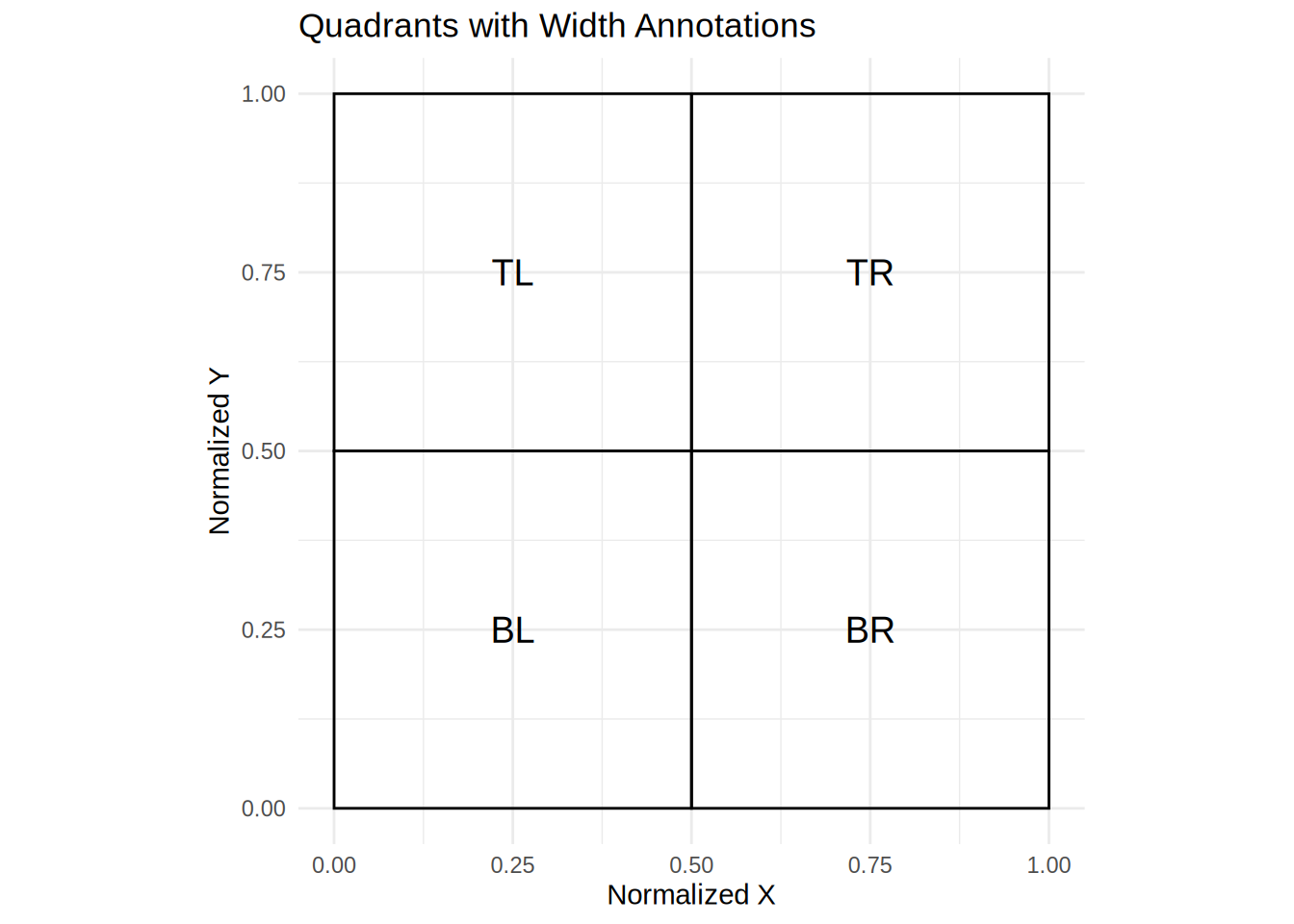

One way is to make the AOIs as big as possible and place them in the four quadrants of the screen. What we will need to first is create a dataframe with location of the AOI (e.g., TL, TR, BL, BR), x and y normalized coordinates and width and height normalized. In addition, we will get the xmin, xmanx, and ymax and ymin of the AOIs.
# Create a data frame for the quadrants with an added column for the quadrant labels
aoi_loc <- data.frame(
loc = c('TL', 'TR', 'BL', 'BR'),
x_normalized = c(0, 0.5, 0, 0.5),
y_normalized = c(0.5, 0.5, 0, 0),
width_normalized = c(0.5, 0.5, 0.5, 0.5),
height_normalized = c(0.5, 0.5, 0.5, 0.5)) %>%
mutate(xmin = x_normalized, ymin = y_normalized,
xmax = x_normalized+width_normalized,
ymax = y_normalized+height_normalized)Clean-up eye data
Here we are going to remove poor convergence scales and confidence. We will also remove coordinates that are 0 in our data.
edat_1 <- edat %>%
dplyr::filter(convergence <= .5, face_conf >= .5) %>%
# remove rows without gaze information
dplyr::filter(x_pred_normalised != 0,
y_pred_normalised != 0) Combining Eye and Trial-level data
Next we are going to combine the eye-tracking data and behavioral data by using the left_join function.
edat_1$subject<-as.factor(edat_1$subject)
edat_1$trial<-as.factor(edat_1$trial)
dat <- left_join(edat_1, filter_edat, by = c("subject","trial"))
dat <- dat %>%
distinct() # make sure to remove duplicate rowsLetβs verify our AOIs look how they are suppose to.
Excellent!
Matching conditions with screen locations
In this experiment we have four different trial types:
- Target, Cohort, Rhyme, Unrealted
- Target, Cohort, Unrealted, Unrelated
- Target, Unrelated, Unrealted, Unrelated
- Target, Rhyme, Unrelated, Unrelated
We will first match the pictures in the TL, TR, BL, BR columns to the correct code condition (T,C, R, U, U2, U3).
# Assuming your data is in a data frame called df
dat <- dat %>%
mutate(
Target = case_when(
tlcode == "T" ~ TL,
trcode == "T" ~ TR,
blcode == "T" ~ BL,
brcode == "T" ~ BR,
TRUE ~ NA_character_ # Default to NA if no match
),
Unrelated = case_when(
tlcode == "U" ~ TL,
trcode == "U" ~ TR,
blcode == "U" ~ BL,
brcode == "U" ~ BR,
TRUE ~ NA_character_
),
Unrelated2 = case_when(
tlcode == "U2" ~ TL,
trcode == "U2" ~ TR,
blcode == "U2" ~ BL,
brcode == "U2" ~ BR,
TRUE ~ NA_character_
),
Unrelated3 = case_when(
tlcode == "U3" ~ TL,
trcode == "U3" ~ TR,
blcode == "U3" ~ BL,
brcode == "U3" ~ BR,
TRUE ~ NA_character_
),
Rhyme = case_when(
tlcode == "R" ~ TL,
trcode == "R" ~ TR,
blcode == "R" ~ BL,
brcode == "R" ~ BR,
TRUE ~ NA_character_
),
Cohort = case_when(
tlcode == "C" ~ TL,
trcode == "C" ~ TR,
blcode == "C" ~ BL,
brcode == "C" ~ BR,
TRUE ~ NA_character_
)
)| X | x0 | filename | trial | time_stamp | time | type | screen_index | x_pred | y_pred | x_pred_normalised | y_pred_normalised | convergence | face_conf | zone_name | zone_x | zone_y | zone_width | zone_height | zone_x_normalised | zone_y_normalised | zone_width_normalised | zone_height_normalised | subject | acc | TL | TR | BL | BR | trialtype | targetword | tlcode | trcode | blcode | brcode | targ_loc | zone_type | RT | response.x | RT_audio | response.y | sampling_rate_subject | max_time | n_unique_times | sampling_rate_trial | Target | Unrelated | Unrelated2 | Unrelated3 | Rhyme | Cohort |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | NA | eyetracking_collection | 153 | 1727868218964 | 0.00000000 | prediction | 4 | 921.5823073 | -61.68745669 | 0.4717325812 | -0.0607758194 | 0 | 1 | NA | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 11788555 | 1 | candle.jpg | sandal.jpg | sandwich.jpg | building.jpg | TCUU | sandwich.jpg | U2 | C | T | U | BL | response_button_image | 1997.8 | sandwich.jpg | 13.0999999 | AUDIO PLAY EVENT FIRED | 29.57322764 | 1922.4 | 57 | 29.65043695 | sandwich.jpg | building.jpg | candle.jpg | NA | NA | sandal.jpg |
| 2 | NA | eyetracking_collection | 153 | 1727868218999 | 34.00000000 | prediction | 4 | 958.2899489 | 78.26706763 | 0.4988631366 | 0.0771104115 | 0 | 1 | NA | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 11788555 | 1 | candle.jpg | sandal.jpg | sandwich.jpg | building.jpg | TCUU | sandwich.jpg | U2 | C | T | U | BL | response_button_image | 1997.8 | sandwich.jpg | 13.0999999 | AUDIO PLAY EVENT FIRED | 29.57322764 | 1922.4 | 57 | 29.65043695 | sandwich.jpg | building.jpg | candle.jpg | NA | NA | sandal.jpg |
| 3 | NA | eyetracking_collection | 153 | 1727868219039 | 73.30000019 | prediction | 4 | 1036.1006719 | 247.37493626 | 0.5563729098 | 0.2437191490 | 0 | 1 | NA | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 11788555 | 1 | candle.jpg | sandal.jpg | sandwich.jpg | building.jpg | TCUU | sandwich.jpg | U2 | C | T | U | BL | response_button_image | 1997.8 | sandwich.jpg | 13.0999999 | AUDIO PLAY EVENT FIRED | 29.57322764 | 1922.4 | 57 | 29.65043695 | sandwich.jpg | building.jpg | candle.jpg | NA | NA | sandal.jpg |
| 4 | NA | eyetracking_collection | 153 | 1727868219076 | 113.09999990 | prediction | 4 | 1048.4626414 | 383.69717600 | 0.5655096204 | 0.3780267744 | 0 | 1 | NA | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 11788555 | 1 | candle.jpg | sandal.jpg | sandwich.jpg | building.jpg | TCUU | sandwich.jpg | U2 | C | T | U | BL | response_button_image | 1997.8 | sandwich.jpg | 13.0999999 | AUDIO PLAY EVENT FIRED | 29.57322764 | 1922.4 | 57 | 29.65043695 | sandwich.jpg | building.jpg | candle.jpg | NA | NA | sandal.jpg |
| 5 | NA | eyetracking_collection | 153 | 1727868219111 | 148.40000010 | prediction | 4 | 1018.1750413 | 433.21330043 | 0.5431241067 | 0.4268111334 | 0 | 1 | NA | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 11788555 | 1 | candle.jpg | sandal.jpg | sandwich.jpg | building.jpg | TCUU | sandwich.jpg | U2 | C | T | U | BL | response_button_image | 1997.8 | sandwich.jpg | 13.0999999 | AUDIO PLAY EVENT FIRED | 29.57322764 | 1922.4 | 57 | 29.65043695 | sandwich.jpg | building.jpg | candle.jpg | NA | NA | sandal.jpg |
| 6 | NA | eyetracking_collection | 153 | 1727868219145 | 182.00000000 | prediction | 4 | 1040.6113826 | 514.57934044 | 0.5597067684 | 0.5069747196 | 0 | 1 | NA | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 11788555 | 1 | candle.jpg | sandal.jpg | sandwich.jpg | building.jpg | TCUU | sandwich.jpg | U2 | C | T | U | BL | response_button_image | 1997.8 | sandwich.jpg | 13.0999999 | AUDIO PLAY EVENT FIRED | 29.57322764 | 1922.4 | 57 | 29.65043695 | sandwich.jpg | building.jpg | candle.jpg | NA | NA | sandal.jpg |
In our study, we need to track not only the condition of each image shown (such as Target, Cohort, Rhyme, or Unrelated) but also where each image is located on the screen during each trial as they are randomized on each trial. To do this, we use a function named find_location. This function is designed to determine the location of a specific image on the screen by comparing the image with the list of possible locations.
The function find_location first checks if the image is NA (missing). If the image is NA, the function returns NA, meaning that thereβs no location to find for this image. If the image is not NA, the function creates a vector loc_names that lists the names of the possible locations. It then attempts to match the given image with the locations. If a match is found, it returns the name of the location (e.g., TL, TR, BL, or BR) where the image is located. If there is no match, the function returns NA.
# Apply the function to each of the targ, cohort, rhyme, and unrelated columns
dat_colnames <- dat %>%
rowwise() %>%
mutate(
targ_loc = find_location(c(TL, TR, BL, BR), Target),
cohort_loc = find_location(c(TL, TR, BL, BR), Cohort),
rhyme_loc = find_location(c(TL, TR, BL, BR), Rhyme),
unrelated_loc = find_location(c(TL, TR, BL, BR), Unrelated),
unrealted2_loc= find_location(c(TL, TR, BL, BR), Unrelated2),
unrelated3_loc=find_location(c(TL, TR, BL, BR), Unrelated3)
) %>%
ungroup()Here is where we are going to use our coordinate information from above. We use the assign_aoi that is adaopted from the gazeR package (Geller et al., 2020) to loop through our object dat_colnames and assign locations (i.e., TR, TL, BL, BR) to our normalized x and y coordinates. This function will label non-looks and off screen coordinates with NA. To make it easier to read we change the numerals assigned by the function to actual screen locations.
assign <- assign_aoi(dat_colnames,X="x_pred_normalised", Y="y_pred_normalised",aoi_loc = aoi_loc)
AOI <- assign %>%
mutate(loc1 = case_when(
AOI==1 ~ "TL",
AOI==2 ~ "TR",
AOI==3 ~ "BL",
AOI==4 ~ "BR"
))| X | x0 | filename | trial | time_stamp | time | type | screen_index | x_pred | y_pred | x_pred_normalised | y_pred_normalised | convergence | face_conf | zone_name | zone_x | zone_y | zone_width | zone_height | zone_x_normalised | zone_y_normalised | zone_width_normalised | zone_height_normalised | subject | acc | TL | TR | BL | BR | trialtype | targetword | tlcode | trcode | blcode | brcode | targ_loc | zone_type | RT | response.x | RT_audio | response.y | sampling_rate_subject | max_time | n_unique_times | sampling_rate_trial | Target | Unrelated | Unrelated2 | Unrelated3 | Rhyme | Cohort | cohort_loc | rhyme_loc | unrelated_loc | unrealted2_loc | unrelated3_loc | AOI | loc1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | NA | eyetracking_collection | 153 | 1727868218964 | 0.00000000 | prediction | 4 | 921.5823073 | -61.68745669 | 0.4717325812 | -0.0607758194 | 0 | 1 | NA | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 11788555 | 1 | candle.jpg | sandal.jpg | sandwich.jpg | building.jpg | TCUU | sandwich.jpg | U2 | C | T | U | BL | response_button_image | 1997.8 | sandwich.jpg | 13.0999999 | AUDIO PLAY EVENT FIRED | 29.57322764 | 1922.4 | 57 | 29.65043695 | sandwich.jpg | building.jpg | candle.jpg | NA | NA | sandal.jpg | TR | NA | BR | TL | NA | NA | NA |
| 2 | NA | eyetracking_collection | 153 | 1727868218999 | 34.00000000 | prediction | 4 | 958.2899489 | 78.26706763 | 0.4988631366 | 0.0771104115 | 0 | 1 | NA | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 11788555 | 1 | candle.jpg | sandal.jpg | sandwich.jpg | building.jpg | TCUU | sandwich.jpg | U2 | C | T | U | BL | response_button_image | 1997.8 | sandwich.jpg | 13.0999999 | AUDIO PLAY EVENT FIRED | 29.57322764 | 1922.4 | 57 | 29.65043695 | sandwich.jpg | building.jpg | candle.jpg | NA | NA | sandal.jpg | TR | NA | BR | TL | NA | 3 | BL |
| 3 | NA | eyetracking_collection | 153 | 1727868219039 | 73.30000019 | prediction | 4 | 1036.1006719 | 247.37493626 | 0.5563729098 | 0.2437191490 | 0 | 1 | NA | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 11788555 | 1 | candle.jpg | sandal.jpg | sandwich.jpg | building.jpg | TCUU | sandwich.jpg | U2 | C | T | U | BL | response_button_image | 1997.8 | sandwich.jpg | 13.0999999 | AUDIO PLAY EVENT FIRED | 29.57322764 | 1922.4 | 57 | 29.65043695 | sandwich.jpg | building.jpg | candle.jpg | NA | NA | sandal.jpg | TR | NA | BR | TL | NA | 4 | BR |
| 4 | NA | eyetracking_collection | 153 | 1727868219076 | 113.09999990 | prediction | 4 | 1048.4626414 | 383.69717600 | 0.5655096204 | 0.3780267744 | 0 | 1 | NA | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 11788555 | 1 | candle.jpg | sandal.jpg | sandwich.jpg | building.jpg | TCUU | sandwich.jpg | U2 | C | T | U | BL | response_button_image | 1997.8 | sandwich.jpg | 13.0999999 | AUDIO PLAY EVENT FIRED | 29.57322764 | 1922.4 | 57 | 29.65043695 | sandwich.jpg | building.jpg | candle.jpg | NA | NA | sandal.jpg | TR | NA | BR | TL | NA | 4 | BR |
| 5 | NA | eyetracking_collection | 153 | 1727868219111 | 148.40000010 | prediction | 4 | 1018.1750413 | 433.21330043 | 0.5431241067 | 0.4268111334 | 0 | 1 | NA | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 11788555 | 1 | candle.jpg | sandal.jpg | sandwich.jpg | building.jpg | TCUU | sandwich.jpg | U2 | C | T | U | BL | response_button_image | 1997.8 | sandwich.jpg | 13.0999999 | AUDIO PLAY EVENT FIRED | 29.57322764 | 1922.4 | 57 | 29.65043695 | sandwich.jpg | building.jpg | candle.jpg | NA | NA | sandal.jpg | TR | NA | BR | TL | NA | 4 | BR |
| 6 | NA | eyetracking_collection | 153 | 1727868219145 | 182.00000000 | prediction | 4 | 1040.6113826 | 514.57934044 | 0.5597067684 | 0.5069747196 | 0 | 1 | NA | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 11788555 | 1 | candle.jpg | sandal.jpg | sandwich.jpg | building.jpg | TCUU | sandwich.jpg | U2 | C | T | U | BL | response_button_image | 1997.8 | sandwich.jpg | 13.0999999 | AUDIO PLAY EVENT FIRED | 29.57322764 | 1922.4 | 57 | 29.65043695 | sandwich.jpg | building.jpg | candle.jpg | NA | NA | sandal.jpg | TR | NA | BR | TL | NA | 2 | TR |
In the AOI object we have our condition variables as columns. For this example, the fixation locations need to be βgatheredβ from separate columns into a single column and βNAβ values need to be re-coded as non-fixations (0). We logically evaluate these below so we know which item was fixated each sample and what was not.
AOI$target <- ifelse(AOI$loc1==AOI$targ_loc, 1, 0) # if in coordinates 1, if not 0.
AOI$unrelated <- ifelse(AOI$loc1 == AOI$unrelated_loc, 1, 0)# if in coordinates 1, if not 0.
AOI$unrelated2 <- ifelse(AOI$loc1 == AOI$unrealted2_loc, 1, 0)# if in coordinates 1, if not 0.
AOI$unrelated3 <- ifelse(AOI$loc1 == AOI$unrelated3_loc, 1, 0)# if in coordinates 1, if not 0.
AOI$rhyme <- ifelse(AOI$loc1 == AOI$rhyme_loc, 1, 0)# if in coordinates 1, if not 0.
AOI$cohort <- ifelse(AOI$loc1 == AOI$cohort_loc, 1, 0)# if in coordinates 1, if not 0. | X | x0 | filename | trial | time_stamp | time | type | screen_index | x_pred | y_pred | x_pred_normalised | y_pred_normalised | convergence | face_conf | zone_name | zone_x | zone_y | zone_width | zone_height | zone_x_normalised | zone_y_normalised | zone_width_normalised | zone_height_normalised | subject | acc | TL | TR | BL | BR | trialtype | targetword | tlcode | trcode | blcode | brcode | targ_loc | zone_type | RT | response.x | RT_audio | response.y | sampling_rate_subject | max_time | n_unique_times | sampling_rate_trial | Target | Unrelated | Unrelated2 | Unrelated3 | Rhyme | Cohort | cohort_loc | rhyme_loc | unrelated_loc | unrealted2_loc | unrelated3_loc | AOI | loc1 | target | unrelated | unrelated2 | unrelated3 | rhyme | cohort |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | NA | eyetracking_collection | 153 | 1727868218964 | 0.00000000 | prediction | 4 | 921.5823073 | -61.68745669 | 0.4717325812 | -0.0607758194 | 0 | 1 | NA | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 11788555 | 1 | candle.jpg | sandal.jpg | sandwich.jpg | building.jpg | TCUU | sandwich.jpg | U2 | C | T | U | BL | response_button_image | 1997.8 | sandwich.jpg | 13.0999999 | AUDIO PLAY EVENT FIRED | 29.57322764 | 1922.4 | 57 | 29.65043695 | sandwich.jpg | building.jpg | candle.jpg | NA | NA | sandal.jpg | TR | NA | BR | TL | NA | NA | NA | NA | NA | NA | NA | NA | NA |
| 2 | NA | eyetracking_collection | 153 | 1727868218999 | 34.00000000 | prediction | 4 | 958.2899489 | 78.26706763 | 0.4988631366 | 0.0771104115 | 0 | 1 | NA | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 11788555 | 1 | candle.jpg | sandal.jpg | sandwich.jpg | building.jpg | TCUU | sandwich.jpg | U2 | C | T | U | BL | response_button_image | 1997.8 | sandwich.jpg | 13.0999999 | AUDIO PLAY EVENT FIRED | 29.57322764 | 1922.4 | 57 | 29.65043695 | sandwich.jpg | building.jpg | candle.jpg | NA | NA | sandal.jpg | TR | NA | BR | TL | NA | 3 | BL | 1 | 0 | 0 | NA | NA | 0 |
| 3 | NA | eyetracking_collection | 153 | 1727868219039 | 73.30000019 | prediction | 4 | 1036.1006719 | 247.37493626 | 0.5563729098 | 0.2437191490 | 0 | 1 | NA | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 11788555 | 1 | candle.jpg | sandal.jpg | sandwich.jpg | building.jpg | TCUU | sandwich.jpg | U2 | C | T | U | BL | response_button_image | 1997.8 | sandwich.jpg | 13.0999999 | AUDIO PLAY EVENT FIRED | 29.57322764 | 1922.4 | 57 | 29.65043695 | sandwich.jpg | building.jpg | candle.jpg | NA | NA | sandal.jpg | TR | NA | BR | TL | NA | 4 | BR | 0 | 1 | 0 | NA | NA | 0 |
| 4 | NA | eyetracking_collection | 153 | 1727868219076 | 113.09999990 | prediction | 4 | 1048.4626414 | 383.69717600 | 0.5655096204 | 0.3780267744 | 0 | 1 | NA | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 11788555 | 1 | candle.jpg | sandal.jpg | sandwich.jpg | building.jpg | TCUU | sandwich.jpg | U2 | C | T | U | BL | response_button_image | 1997.8 | sandwich.jpg | 13.0999999 | AUDIO PLAY EVENT FIRED | 29.57322764 | 1922.4 | 57 | 29.65043695 | sandwich.jpg | building.jpg | candle.jpg | NA | NA | sandal.jpg | TR | NA | BR | TL | NA | 4 | BR | 0 | 1 | 0 | NA | NA | 0 |
| 5 | NA | eyetracking_collection | 153 | 1727868219111 | 148.40000010 | prediction | 4 | 1018.1750413 | 433.21330043 | 0.5431241067 | 0.4268111334 | 0 | 1 | NA | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 11788555 | 1 | candle.jpg | sandal.jpg | sandwich.jpg | building.jpg | TCUU | sandwich.jpg | U2 | C | T | U | BL | response_button_image | 1997.8 | sandwich.jpg | 13.0999999 | AUDIO PLAY EVENT FIRED | 29.57322764 | 1922.4 | 57 | 29.65043695 | sandwich.jpg | building.jpg | candle.jpg | NA | NA | sandal.jpg | TR | NA | BR | TL | NA | 4 | BR | 0 | 1 | 0 | NA | NA | 0 |
| 6 | NA | eyetracking_collection | 153 | 1727868219145 | 182.00000000 | prediction | 4 | 1040.6113826 | 514.57934044 | 0.5597067684 | 0.5069747196 | 0 | 1 | NA | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 11788555 | 1 | candle.jpg | sandal.jpg | sandwich.jpg | building.jpg | TCUU | sandwich.jpg | U2 | C | T | U | BL | response_button_image | 1997.8 | sandwich.jpg | 13.0999999 | AUDIO PLAY EVENT FIRED | 29.57322764 | 1922.4 | 57 | 29.65043695 | sandwich.jpg | building.jpg | candle.jpg | NA | NA | sandal.jpg | TR | NA | BR | TL | NA | 2 | TR | 0 | 0 | 0 | NA | NA | 1 |
Now we pivot so instead of each condition being an individual column it is one column. This helps with visualization. We pivot_longer or make longer the target, unrelated, unrealted2, unrelated3, rhyme, and cohort columns. We put them into a column called condition and place the values of 0 and 1 into a column called look.
dat_long_aoi_me <- AOI %>%
select(subject, trial, trialtype, target, cohort, unrelated, unrelated2, unrelated3, rhyme, time, x_pred_normalised, y_pred_normalised, RT_audio) %>%
pivot_longer(
cols = c(target, unrelated, unrelated2, unrelated3, rhyme, cohort),
names_to = "condition",
values_to = "Looks"
)
Non-looks
There are two ways we can handle missingness here. We can either re-code the NA values as non-looks, or we can exclude looks that occurred outside an AOI.
Here we are going to treat them as non-looks (0)
TCRU
We will be looking at the target, cohort, rhyme, unrelated condition for the vignette.
With the presentation of audio there is a delay in when it was played. We coded that above as RT_audio. Below we change time to correspond to audio_onset. We can do this by subtracting RT_audio from time. we also remove coordinates outside the standardized window.
dat_long_aoi_me_TCRU <- dat_long_aoi_me %>%
filter(trialtype=="TCRU") %>%
na.omit()gaze_sub <-dat_long_aoi_me_TCRU%>%
group_by(subject, trial) %>%
mutate(time = (time-RT_audio)-300) %>% # subtract audio rt onset for each
filter(time >= -100, time < 2000) %>% # start -100 to 2000 ms
dplyr::filter(x_pred_normalised > 0,
x_pred_normalised < 1,
y_pred_normalised > 0,
y_pred_normalised < 1) Downsampling
We also downsampled our data into 100 ms bins using the downsample_gaze function from the webgazeR package. In this process, we read in our gaze_sub object, specified the bin.length argument as 200, and set the time variable as time. We also indicated the variables to aggregate on, such as condition and timebins. The time_bin variable is created by the function and represents the bins we are aggregating across. There is no clear consensus on binning, so we cannot provide a concrete rule of thumb here.
gaze_sub <- webgazeR::downsample_gaze(gaze_sub, bin.length=100, timevar="time", aggvars=c("condition", "time_bin"))Upsampling
You might also want to upsample your data. If this is the case you can use the upsample_gaze function which will upsample the data to 1000Hz (or whatever sampling rate you want). After you upsample your data you can use smooth_gaze to apply a moving average of the gaze samples skipping over NA values. Finally, you can use interpolate_gaze to perform linear interpolation.
AOI_upsample <- AOI %>%
group_by(subject, trial) %>%
upsample_gaze(
gaze_cols = c("x_pred_normalised", "y_pred_normalised"),
upsample_pupil = FALSE,
target_hz = 250)
AOI_upsample %>%
head() %>%
select(subject, trial, time, x_pred_normalised, y_pred_normalised) %>%
kable()| subject | trial | time | x_pred_normalised | y_pred_normalised |
|---|---|---|---|---|
| 11788555 | 7 | 0 | 0.2067704716 | 0.4331503515 |
| 11788555 | 7 | 4 | NA | NA |
| 11788555 | 7 | 8 | NA | NA |
| 11788555 | 7 | 12 | NA | NA |
| 11788555 | 7 | 16 | NA | NA |
| 11788555 | 7 | 20 | NA | NA |
Plotting

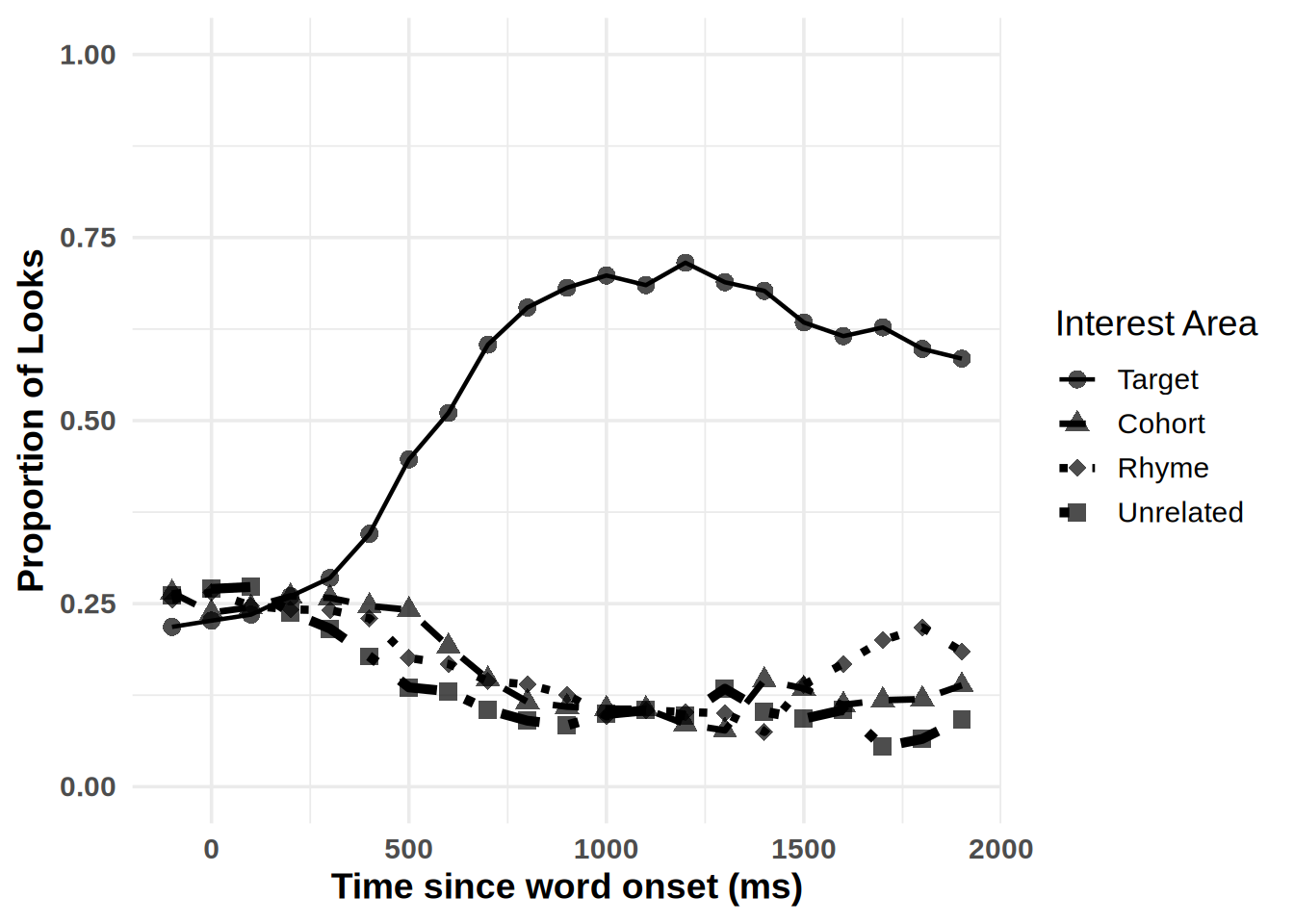

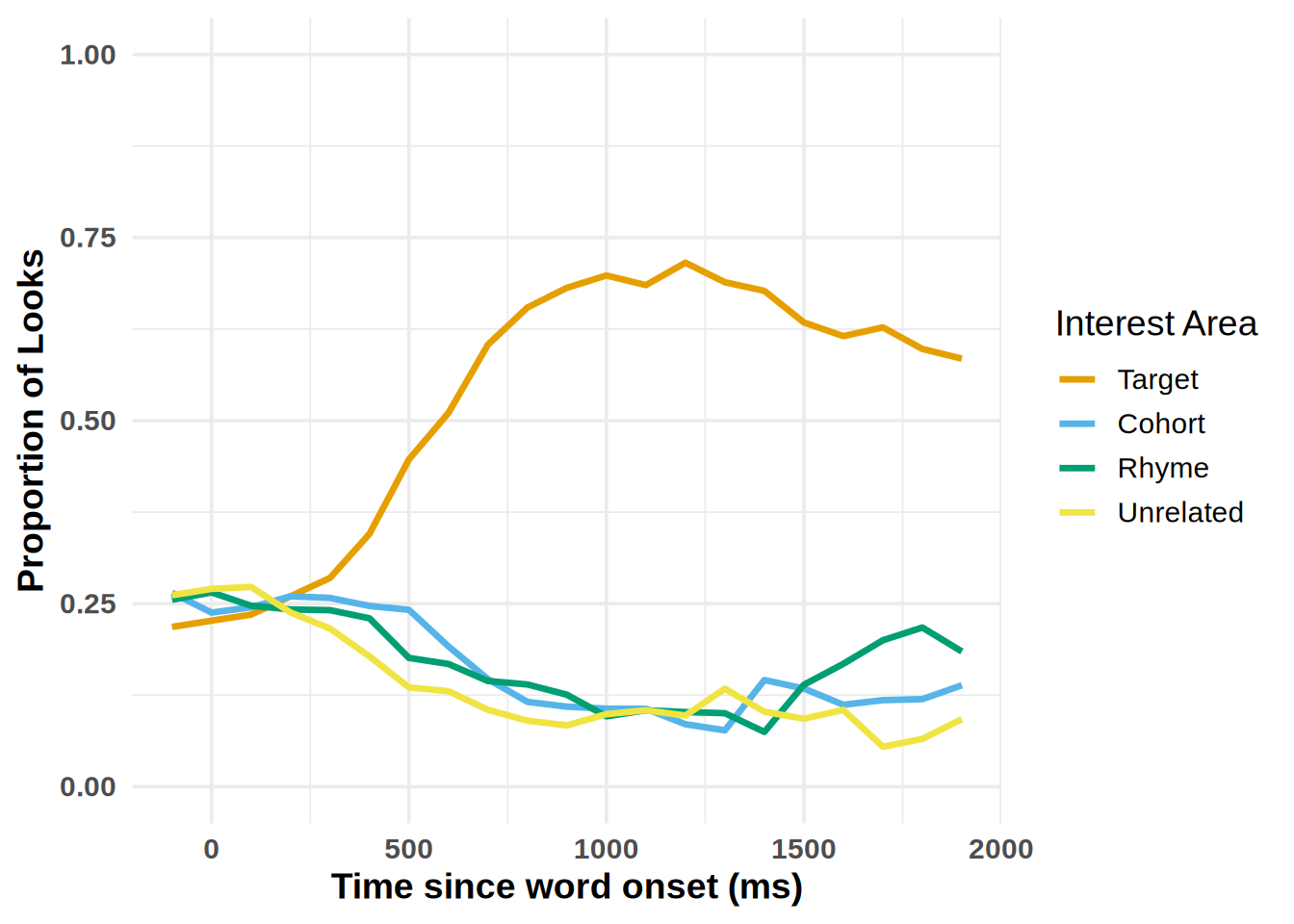

To simplify plotting your time-course data, we have created the plot_IA_proportions function. This function takes several arguments. The ia_column argument specifies the column containing your Interest Area (IA) labels. The time_column argument requires the name of your time bin column, and the proportion_column argument specifies the column containing fixation or look proportions. Additional arguments allow you to specify custom names for each IA in the ia_column, enabling you to label them as desired.
plot_IA_proportions(gaze_sub,
ia_column = "condition",
time_column = "time_bin",
proportion_column = "Fix",
ia_mapping = list(target = "Target", cohort = "Cohort", rhyme = "Rhyme", unrelated = "Unrelated"), use_color=TRUE)
plot_IA_proportions(gaze_sub,
ia_column = "condition",
time_column = "time_bin",
proportion_column = "Fix",
ia_mapping = list(target = "Target", cohort = "Cohort", rhyme = "Rhyme", unrelated = "Unrelated"), use_color=FALSE)
Gorilla provided coordinates
If you open the each individual .xlsx file provided by gorilla you will see that it provides standardized coordinates for each location: TL, TR, BL, BR. Letβs use these coordinates instead of setting some general coordinates.
We will use the function extract_aois to get the coordinates for each quadrant on screen. You can use the zone_names argument to get the zones you want to use.
aois <- extract_aois(vwp_paths_filtered, zone_names = c("TL", "BR", "TR", "BL"))Below is the table the extract_aois function will return.
# Define the data
aois <- data.frame(
loc = c("BL", "TL", "TR", "BR"),
x_normalized = c(0.03, 0.02, 0.73, 0.73),
y_normalized = c(0.04, 0.74, 0.75, 0.06),
width_normalized = c(0.26, 0.26, 0.24, 0.23),
height_normalized = c(0.25, 0.25, 0.24, 0.25),
xmin = c(0.03, 0.02, 0.73, 0.73),
ymin = c(0.04, 0.74, 0.75, 0.06),
xmax = c(0.29, 0.28, 0.97, 0.96),
ymax = c(0.29, 0.99, 0.99, 0.31)
)
aois %>%
kable()| loc | x_normalized | y_normalized | width_normalized | height_normalized | xmin | ymin | xmax | ymax |
|---|---|---|---|---|---|---|---|---|
| BL | 0.03 | 0.04 | 0.26 | 0.25 | 0.03 | 0.04 | 0.29 | 0.29 |
| TL | 0.02 | 0.74 | 0.26 | 0.25 | 0.02 | 0.74 | 0.28 | 0.99 |
| TR | 0.73 | 0.75 | 0.24 | 0.24 | 0.73 | 0.75 | 0.97 | 0.99 |
| BR | 0.73 | 0.06 | 0.23 | 0.25 | 0.73 | 0.06 | 0.96 | 0.31 |
We see the AOIs are a bit smaller now with the gorilla provided coordinates.
We can follow the same steps from above to analyze our data, making sure we input the write coordinates into the aoi_loc argument.
assign <- assign_aoi(dat_colnames,X="x_pred_normalised", Y="y_pred_normalised",aoi_loc = aois)
AOI <- assign %>%
mutate(loc1 = case_when(
AOI==1 ~ "BL",
AOI==2 ~ "TL",
AOI==3 ~ "TR",
AOI==4 ~ "BR"
))AOI$target <- ifelse(AOI$loc1==AOI$targ_loc, 1, 0) # if in coordinates 1, if not 0.
AOI$unrelated <- ifelse(AOI$loc1 == AOI$unrelated_loc, 1, 0)# if in coordinates 1, if not 0.
AOI$unrelated2 <- ifelse(AOI$loc1 == AOI$unrealted2_loc, 1, 0)# if in coordinates 1, if not 0.
AOI$unrelated3 <- ifelse(AOI$loc1 == AOI$unrelated3_loc, 1, 0)# if in coordinates 1, if not 0.
AOI$rhyme <- ifelse(AOI$loc1 == AOI$rhyme_loc, 1, 0)# if in coordinates 1, if not 0.
AOI$cohort <- ifelse(AOI$loc1 == AOI$cohort_loc, 1, 0)# if in coordinates 1, if not 0. Now we pivot so instead of each condition being an individual column it is one column.
dat_long_aoi_me <- AOI %>%
select(subject, trial, trialtype, target, cohort, unrelated, unrelated2, unrelated3, rhyme, time, x_pred_normalised, y_pred_normalised, RT_audio) %>%
pivot_longer(
cols = c(target, unrelated, unrelated2, unrelated3, rhyme, cohort),
names_to = "condition",
values_to = "Looks"
)dat_long_aoi_me_TCRU <- dat_long_aoi_me %>%
filter(trialtype=="TCRU") %>%
na.omit()gaze_sub <-dat_long_aoi_me_TCRU %>%
group_by(subject, trial) %>%
mutate(time = (time-RT_audio)-300) %>% # subtract audio rt onset for each
filter(time >= 0, time < 2000) %>%
dplyr::filter(x_pred_normalised > 0,
x_pred_normalised < 1,
y_pred_normalised > 0,
y_pred_normalised < 1)gaze_sub <- downsample_gaze(gaze_sub, bin.length=100, timevar="time", aggvars=c("condition", "time_bin"))Plotting
gor <- plot_IA_proportions(gaze_sub,
ia_column = "condition",
time_column = "time_bin",
proportion_column = "Fix",
ia_mapping = list(target = "Target", cohort = "Cohort", rhyme = "Rhyme", unrelated = "Unrelated"))
gor
We see the effect is a lot larger when using the gorilla provided coordinates, but a bit noiser.
